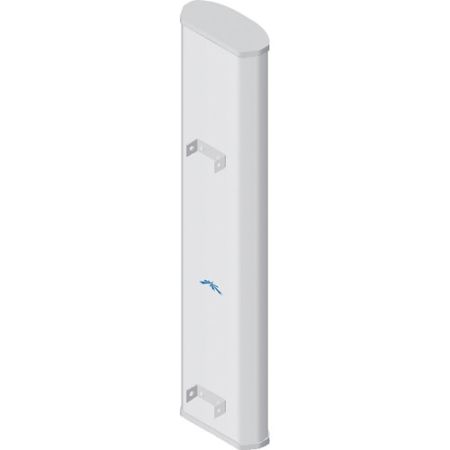

Ubiquiti Networks AM-9M13-120 900MHz airMAX 120° Sector 13dBi

Ubiquiti Networks AM-9M13-120 Overview

The Ubiquiti airMAX AM-9M13 Sector Antenna is a 900 MHz, 2x2 MIMO BaseStation antenna designed for both point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) deployments. When combined with the RocketM BaseStation (sold separately), it creates a powerful, high-performance solution for extending wireless connectivity across wide areas.

This antenna comes with a built-in Rocket mount, allowing for quick, tool-free installation. Once paired with the RocketM, it takes full advantage of Ubiquiti’s airMAX technology, which enhances network performance by minimizing noise interference and optimizing beam patterns. The result is stronger signal quality, higher capacity, and more reliable multi-point coverage.

Designed for scalability and durability, the AM-9M13 is an excellent choice for building robust wireless networks that need long-range coverage and high throughput in noisy or challenging environments.

Key Features

·         902-928 MHz Frequency Range

·         13.2-13.8 dBi Gain

·         109° HPOL Beamwidth

·         120° VPOL Beamwidth

·         1.5:1 Max. VSWR

·         15° Electrical Beamwidth

·         30 dB Min. Cross-pol Isolation

·         Universal Pole Mount Included
