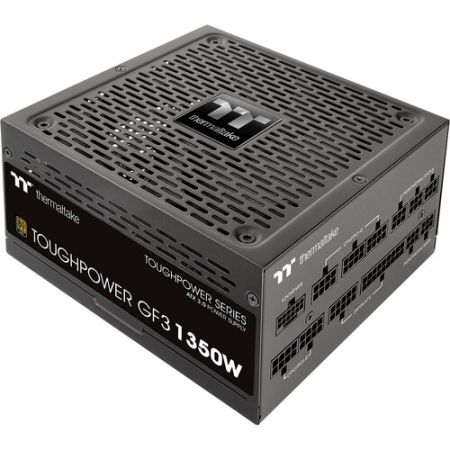

Thermaltake PS-TPD-1350FNFAGU-4 Toughpower GF3 1350W 80 PLUS Gold Modular ATX Power Supply
Availablity :
In Stock
In Stock
|
USD 221.95
Thermaltake PS-TPD-1350FNFAGU-4 Toughpower GF3 1350W 80 PLUS Gold Modular ATX Power Supply
Key Specs
Total Connectors
1x 24-Pin ATX Motherboard
1x 8-Pin EPS CPU
1x 4+4-Pin EPS CPU
4x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
12x 15-Pin SATA
4x 4-Pin Peripheral / Molex
1x 4-Pin Floppy
Cable Design
Flat, Modular
Total Wattage
1350 W
Number of +12 V Rails
1
Efficiency Rating
80 PLUS Gold
Form Factor
ATX
Connectivity
Total Connectors
1x 24-Pin ATX Motherboard
1x 8-Pin EPS CPU
1x 4+4-Pin EPS CPU
4x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
12x 15-Pin SATA
4x 4-Pin Peripheral / Molex
1x 4-Pin Floppy
Cable Design
Flat, Modular
PCIe Connector Distances
SATA Connector Distances
Peripheral Connector Distances
Floppy Connector Distances
ATX Connector Distance
EPS Connector Distances
Electrical
Total Wattage
1350 W
Number of +12 V Rails
1
Combined Power for +12 V
1350 W
Max Load for +12 V
112.5 A
Combined Power for +3.3/+5 V
120 W
Max Load for +3.3 V
24 A
Max Load for +5 V
24 A
Max Power for +5 Vsb
15 W
Max Load for +5 Vsb
3 A
Max Power for -12 V
6 W
Max Load for -12 V
0.5 A
Input Power
100 to 240 VAC, 50 / 60 Hz at 8 to 16 A
General
Efficiency Rating
80 PLUS Gold
Active Power Factor Correction
Yes
Cooling
Fan Size
Bearing Type
Fluid Dynamic Bearings (FDB)
Noise Level
36.6 dBA
Physical
Form Factor
ATX
Compliance
ATX 12 V v3.0
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications
BSMI, CB, CCC, CE, EAC, FCC, IC, TUV, UKCA
Operating Conditions
Mean Time Between Failures (MTBF)
100,000 Hours
Dimensions
Weight
Packaging Info
Package Weight
8.205 lb
Box Dimensions (LxWxH)
12.5 x 9.1 x 6.3"
| Length | 12.6 in |
| Width | 9.2 in |
| Height | 6.3 in |
| Weight | 8.2 lbs |
