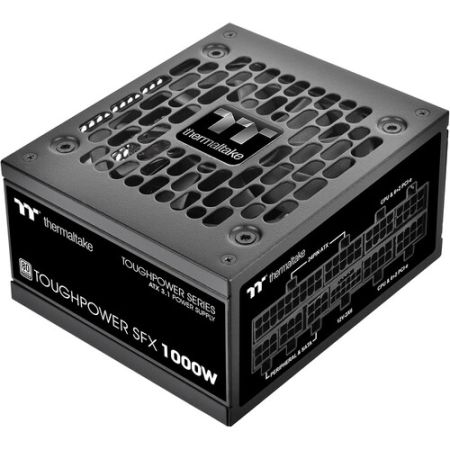

Thermaltake PS-STP-1000FNFAPU-1 Toughpower SFX 1000W 80 PLUS Platinum Power Supply

Total Connectors

1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA

Cable Design

Modular

Total Wattage

1000 W

Number of +12 V Rails

1

Efficiency Rating

80 PLUS Platinum

Form Factor

ATX

Total Connectors

1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA

Cable Design

Modular

PCIe Connector Distances

SATA Connector Distances

Peripheral Connector Distances

ATX Connector Distance

EPS Connector Distances

Total Wattage

1000 W

Number of +12 V Rails

1

Combined Power for +12 V

1000 W

Max Load for +12 V

83.3 A

Combined Power for +3.3/+5 V

120 W

Max Load for +3.3 V

18 A

Max Load for +5 V

18 A

Max Power for +5 Vsb

12.5 W

Max Load for +5 Vsb

2.5 A

Max Power for -12 V

3.6 W

Max Load for -12 V

0.3 A

Input Power

100 to 240 VAC, 50 / 60 Hz

Efficiency Rating

80 PLUS Platinum

Active Power Factor Correction

Yes

Fan Size

Bearing Type

Fluid Dynamic Bearings (FDB)

Form Factor

ATX

Compliance

ATX v3.1

Protection

Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection

Certifications

BSMI, CB, CCC, CE, EAC, FCC, ICES, RCM, TUV, UKCA

Operating Conditions

Dimensions

Package Weight

4.87 lb

Box Dimensions (LxWxH)

10.1 x 6.9 x 4.2"
