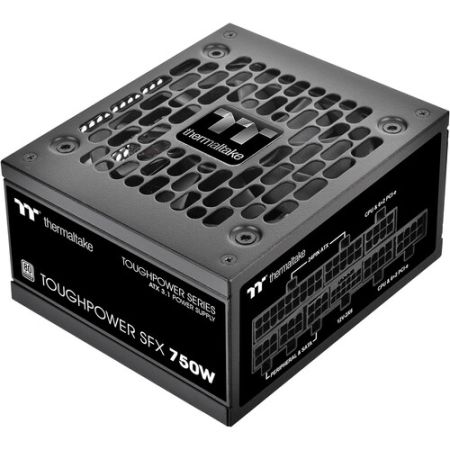

Thermaltake PS-STP-0750FNFAPU-1 Toughpower SFX 750W 80 PLUS Platinum Power Supply
Availablity :
In Stock
In Stock
|
USD 164.82
Thermaltake PS-STP-0750FNFAPU-1 Toughpower SFX 750W 80 PLUS Platinum Power Supply
Key Specs
Total Connectors
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
2x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
8x 15-Pin SATA
Cable Design
Modular
Total Wattage
750 W
Number of +12 V Rails
1
Efficiency Rating
80 PLUS Platinum
Form Factor
ATX
Connectivity
Total Connectors
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
2x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
8x 15-Pin SATA
Cable Design
Modular
PCIe Connector Distances
SATA Connector Distances
Peripheral Connector Distances
ATX Connector Distance
EPS Connector Distances
Electrical
Total Wattage
750 W
Number of +12 V Rails
1
Combined Power for +12 V
750 W
Max Load for +12 V
62.5 A
Combined Power for +3.3/+5 V
120 W
Max Load for +3.3 V
18 A
Max Load for +5 V
18 A
Max Power for +5 Vsb
12.5 W
Max Load for +5 Vsb
2.5 A
Max Power for -12 V
3.6 W
Max Load for -12 V
0.3 A
Input Power
100 to 240 VAC, 50 / 60 Hz
General
Efficiency Rating
80 PLUS Platinum
Active Power Factor Correction
Yes
Cooling
Fan Size
Bearing Type
Fluid Dynamic Bearings (FDB)
Physical
Form Factor
ATX
Compliance
ATX v3.1
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection
Certifications
BSMI, CB, CCC, CE, EAC, FCC, ICES, RCM, TUV, UKCA
Operating Conditions
Dimensions
Packaging Info
Package Weight
4.645 lb
Box Dimensions (LxWxH)
10.2 x 6.9 x 4.3"
| Length | 7 in |
| Width | 10.2 in |
| Height | 4.3 in |
| Weight | 4.75 lbs |
