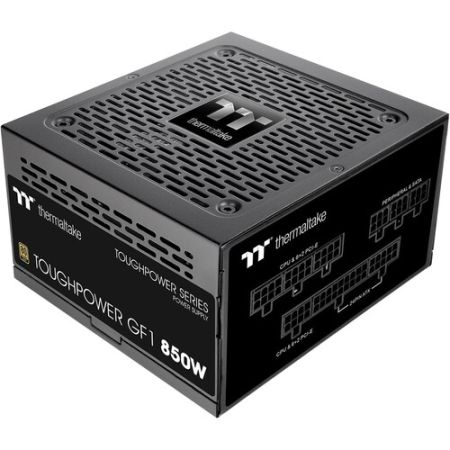

Thermaltake PS-TPD-0850FNFAGU-P Toughpower GF1 850W 80 PLUS Gold TT Premium Power Supply

Total Connectors

1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA 4x 4-Pin Peripheral / Molex

Cable Design

Modular

Total Wattage

850 W

Number of +12 V Rails

1

Efficiency Rating

80 PLUS Gold

Form Factor

ATX

Total Connectors

1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 8x 15-Pin SATA 4x 4-Pin Peripheral / Molex

Cable Design

Modular

PCIe Connector Distances

SATA Connector Distances

Peripheral Connector Distances

ATX Connector Distance

EPS Connector Distances

Total Wattage

850 W

Number of +12 V Rails

1

Combined Power for +12 V

850 W

Max Load for +12 V

70.8 A

Combined Power for +3.3/+5 V

100 W

Max Load for +3.3 V

20 A

Max Load for +5 V

20 A

Max Power for +5 Vsb

15 W

Max Load for +5 Vsb

3 A

Max Power for -12 V

3.6 W

Max Load for -12 V

0.3 A

Input Power

100 to 240 VAC, 50 / 60 Hz

Efficiency Rating

80 PLUS Gold

Active Power Factor Correction

Yes

Fan Size

Bearing Type

Fluid Dynamic Bearings (FDB)

Form Factor

ATX

Protection

Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection

Certifications

FCC, cTUVus

Operating Conditions

Dimensions

Package Weight

6.245 lb

Box Dimensions (LxWxH)

12.8 x 9.4 x 5.3"
