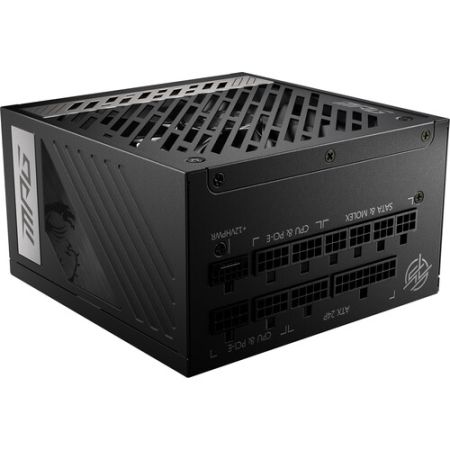

MSI MPG A1000G PCIE5 1000W 80 PLUS Gold Modular Power Supply

Total Connectors

1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 6x 6+2-Pin PCIe 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 1x 4-Pin Floppy

Cable Design

Modular

PCIe Connector Distances

SATA Connector Distances

Peripheral Connector Distances

Floppy Connector Distances

ATX Connector Distance

EPS Connector Distances

Total Wattage

1000 W

Number of +12 V Rails

1

Combined Power for +12 V

1000 W

Max Load for +12 V

83.5 A

Combined Power for +3.3/+5 V

120 W

Max Load for +3.3 V

22 A

Max Load for +5 V

22 A

Max Power for +5 Vsb

15 W

Max Load for +5 Vsb

3 A

Max Power for -12 V

3.6 W

Max Load for -12 V

0.3 A

Peak Power

1000 W

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 5 to 10 A

Efficiency Rating

80 PLUS Gold

Active Power Factor Correction

Yes

Efficiency

90%

Fan Size

Bearing Type

Fluid Dynamic Bearings (FDB)

Form Factor

ATX

Protection

Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection

Dimensions

Weight

Package Weight

7.71 lb

Box Dimensions (LxWxH)

11.8 x 9.9 x 5.5"
