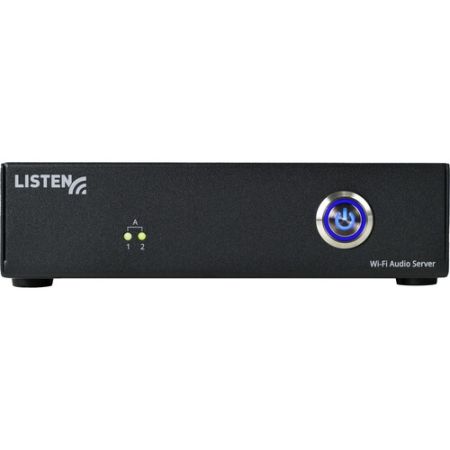

Listen Technologies Listenwifi 2-Channel Wi-Fi Audio Server LW-110-02-01

Compatibility

Not Specified by Manufacturer

USB I/O

1 x USB-A 2.0 Female Input/Output

Audio

Connections

Balanced Audio Inputs: Terminal Blocks: Two Analog Inputs, Rear Panel, One Terminal Block Connector Per Input, Balanced, +4 dBu (Line) Nominal Input Level, +16 dBu Maximum Input Level, Impedance 100 Kilohms RCA Audio Inputs: Two Analog Inputs, Rear Panel, One Dual Summing RCA Connector Per Input, Unbalanced, -10 dBu (Line) Nominal Input Level, +2 dBu Maximum Input Level, Impedance 100 kilohms Public Address Input Trigger Level: Channel Override Occurs When Audio is Detected 23 dB Below Nominal Input Level. Terminal Blocks: -19 dBu (Nominal +4 dBu) RCA Connectors: -33 dBu (Nominal -10 dBu) Ethernet: RJ-45 Supports 10/100/1000 Mbps Speed. Maximum 328' / 100 m Cat5/6 Cable Length USB: Type A 2.0 Supports Reset to Defaults USB Drive

Communication

IP Address: DHCP, Static, Reserved Prioritization: QoS/ToS Users: 500 per Server - Multiple Servers May Be Used to Increase the Number of Users Max Channels: 2 Mono (1 Stereo) - Multiple Servers May Be Used to Increase the Number of Channels WAP Support: 802.11n or Better with WMM (Wireless Multi-Media) Enabled Bandwidth (Audio): 125 kb/s per Listening Device Bit Depth: 16 Bits Sampling Rate: 48 kHz Transport Protocols: Unicast RTP, UDP, HTTPS Discovery Protocols: mDNS, DNS-SD, DNS Security: TLS 1.2 (AES 128 Bit) USB: 2.0 Latency (System): 40 to 60 ms, Dependent on Network, Traffic, QOS, and Listening Device Supported Listening Devices: iOS and Android Personal Smartphones Supported with the ListenWIFI Mobile app installed

Controls and Indicators

User Controls: Power Button Power Button LED: Flashing Blue - Server Is Booting Up Establishing Network Connection; Solid Blue - Server Is Fully Booted with Valid Network Connection; Rapid Flash Blue - Server Firmware Is Being Updated or Reset to Defaults Setup/Programming: Free Software Available for On-Premise Central Management of All Wi-Fi Audio Servers on the Network. The Listenwifi Manager Software Provides Central Management of The Entire Listenwifi System, Including Servers, Beacons, Receivers, and Mobile Apps. Software Also Facilitates Checkout / Check-In of Receivers as well as Mobile App Customizations to Support Venue Branding

Mobile App Compatible

Yes: Android & iOS App Name: ListenWIFI Mobile

Power Source

AC Adapter with Power Brick (Included)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

5 VDC at 6 A

Power Consumption

30 W

Color

Black

Material of Construction

Powder Coated Stainless Steel

Certifications

CE, FCC, RoHS, UKCA, UL

Dimensions

Weight

Package Weight

3.84 lb

Box Dimensions (LxWxH)

13.4 x 10.4 x 3.1"
