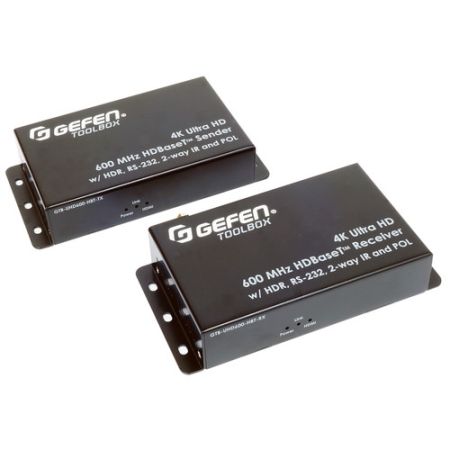

Gefen GTB-UHD600-HBT 4K Ultra HD 600 MHz HDBaseT Extender Set with HDR, RS-232, 2-Way IR & PoL (264')

Resolution and Distance

4K Ultra HD 3840 x 2160 to 60 Hz, 4:4:4, up to 264' / 80 m, 8-bit color 4K Cinema (DCI) 4096 x 2160 to 60 Hz 4:4:4, up to 264' / 80 m, 8-bit color 1080p Full HD 60 Hz and WUXGA 1920 x 1200 to 60 Hz, up to 330' / 100 m, up to 12-bit Deep Color

TMDS Clock Frequency

600 MHz max

Bandwidth

18.2 Gb/s, total

Video Input Connector

Sender/Receiver: 1 x HDMI Type A 19-pin, female, locking

Ports

1 x RJ45 per unit, shielded 1 x RS-232 per unit, 3-pin Phoenix 1 x IR in/ext per unit, 3.5 mm mini-stereo jack 1 x IR out per unit, 3.5 mm mini-mono jack

IR Extender

EXT-RMT-EXTIRN

LED Indicators

Power: 1 per unit (blue) Link: 1 per unit (green) HDMI-Active: 1 per unit (green)

Power Supply

Single, 12 VDC, locking, 5.5 mm barrel / 2.1 mm pin

Power Consumption

14 W maximum, both units combined

Operating Temperature

Operating Humidity

5 to 90% RH, non-condensing

Storage Temperature

Storage Humidity

0 to 95% RH, non-condensing

MTBF

50,000 hours

Dimensions

Sender/Receiver: 4.7 x 1.0 x 2.9" / 11.9 x 2.6 x 7.3 cm

Weight

Sender/Receiver: 0.3 lb / 0.14 kg

Package Weight

2.15 lb

Box Dimensions (LxWxH)

10.45 x 6.95 x 3.9"
