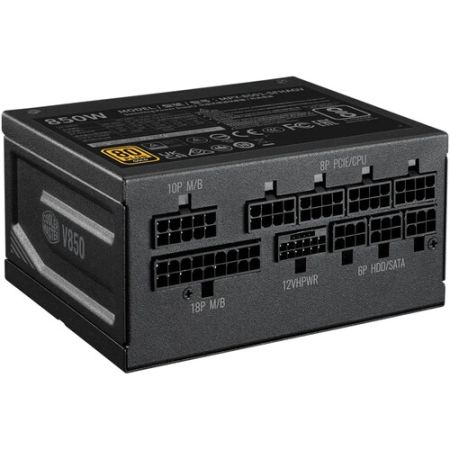

Cooler Master MPY-8501-SFHAGV-3U1 V SFX 850W 80 PLUS Gold Modular Power Supply
Availablity :
In Stock
In Stock
|
USD 157.29
Cooler Master MPY-8501-SFHAGV-3U1 V SFX 850W 80 PLUS Gold Modular Power Supply
Key Specs
Total Connectors
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU
1x 8-Pin EPS CPU
8x 15-Pin SATA
4x 4-Pin Peripheral / Molex
4x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
Cable Design
Modular
Total Wattage
850 W
Number of +12 V Rails
1
Efficiency Rating
80 PLUS Gold
Form Factor
SFX
Connectivity
Total Connectors
1x 24-Pin ATX Motherboard
1x 4+4-Pin EPS CPU
1x 8-Pin EPS CPU
8x 15-Pin SATA
4x 4-Pin Peripheral / Molex
4x 6+2-Pin PCIe
1x 16-Pin PCIe (12VHPWR)
Cable Design
Modular
PCIe Connector Distances
SATA Connector Distances
Peripheral Connector Distances
ATX Connector Distance
EPS Connector Distances
Electrical
Total Wattage
850 W
Number of +12 V Rails
1
Combined Power for +12 V
849.6 W
Max Load for +12 V
70.8 A
Combined Power for +3.3/+5 V
120 W
Max Load for +3.3 V
20 A
Max Load for +5 V
20 A
Max Power for +5 Vsb
15 W
Max Load for +5 Vsb
3 A
Max Power for -12 V
3.6 W
Max Load for -12 V
0.3 A
Input Power
100 to 240 VAC, 50 / 60 Hz
General
Efficiency Rating
80 PLUS Gold
Active Power Factor Correction
Yes
Cooling
Fan Size
Bearing Type
Fluid Dynamic Bearings (FDB)
Physical
Form Factor
SFX
Compliance
SFX 12V v3.42
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection
Certifications
BSMI, CB, CCC, CE, EAC, FCC, RCM, TUV, UKCA, cTUVus
Mean Time Between Failures (MTBF)
100,000 Hours
Dimensions
Weight
Packaging Info
Package Weight
4.62 lb
Box Dimensions (LxWxH)
10.4 x 7.6 x 4"
| Length | 10.4 in |
| Width | 7.6 in |
| Height | 4 in |
| Weight | 4.62 lbs |
