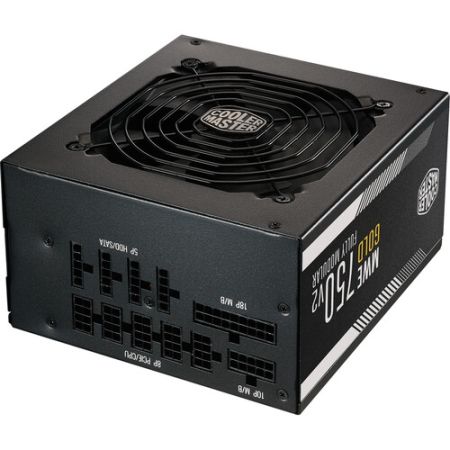

Cooler Master MPE-7501-AFAAG-US MWE Gold V2 750W 80 PLUS Gold Modular Power Supply

Total Connectors

1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 4x 6+2-Pin PCIe

Cable Design

Modular

Total Wattage

750 W

Number of +12 V Rails

1

Efficiency Rating

80 PLUS Gold

Form Factor

ATX

Total Connectors

1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 1x 8-Pin EPS CPU 12x 15-Pin SATA 4x 4-Pin Peripheral / Molex 4x 6+2-Pin PCIe

Cable Design

Modular

PCIe Connector Distances

SATA Connector Distances

Peripheral Connector Distances

ATX Connector Distance

EPS Connector Distances

Total Wattage

750 W

Number of +12 V Rails

1

Combined Power for +12 V

750 W

Max Load for +12 V

62.5 A

Combined Power for +3.3/+5 V

100 W

Max Load for +3.3 V

20 A

Max Load for +5 V

20 A

Max Power for +5 Vsb

15 W

Max Load for +5 Vsb

3 A

Max Power for -12 V

3.6 W

Max Load for -12 V

0.3 A

Efficiency Rating

80 PLUS Gold

Active Power Factor Correction

Yes

Efficiency

90%

Fan Size

Bearing Type

Hydraulic

Noise Level

0 to 24.9 dBA

Form Factor

ATX

Compliance

ATX 12 V

Protection

Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection

Certifications

BSMI, CCC, CE, EAC, FCC, RCM, TUV, cTUVus

Operating Conditions

Mean Time Between Failures (MTBF)

100,000 Hours

Dimensions

Weight

Package Weight

5.96 lb

Box Dimensions (LxWxH)

12.4 x 7.8 x 4.7"
