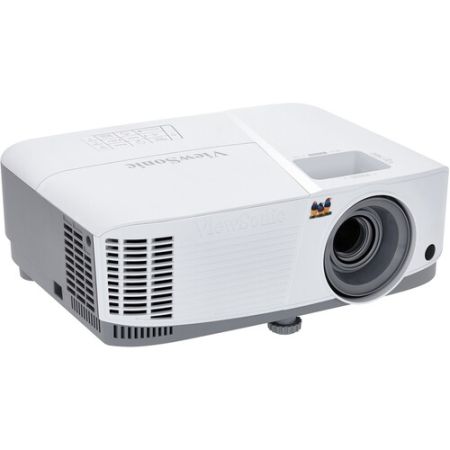

ViewSonic PA504W 4000-Lumen WXGA DLP Projector
Availablity :
Out of Stock
Out of Stock
|
Call us for price (669) 244-0333
ViewSonic PA504W 4000-Lumen WXGA DLP Projector
Key Specs
Display System
1-Chip 0.65" DMD DLP
Native Resolution
1280 x 800
Maximum Brightness
4000 Lumens (ANSI)
Throw Ratio
Projection Size
HDR Support
No
Inputs/Outputs
2x HDMI 1.4 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Power, Service Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) Control, LAN Input
Light Source
Lamp (1 x UHP)
Image Display
Display System
1-Chip 0.65" DMD DLP
Native Resolution
1280 x 800
Supported Resolutions
Maximum: 1920 x 1080
Maximum Brightness
4000 Lumens (ANSI)
Offset
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
DLP Link 3D
Yes
Supported 3D Formats
Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p)
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 102kHz
Vertical: 23 to 120Hz
Latency
16 ms
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/2.59 to 2.87
Focal Length
16.88 to 21.88mm
Optical Zoom
Manual: 1.3x
Throw Distance
Throw Ratio
Projection Size
Features
Keystone Correction
HDR Support
No
Digital Zoom
2x
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
10 W
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 1.4 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A Power, Service Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) Control, LAN Input
HDCP Support
Yes: Version 1.4
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No, Optional Adapter Available
Bluetooth
No
General
Light Source
Lamp (1 x UHP)
Lamp Power
200 W
Expected Lamp Life
Medium Brightness: 5000 Hours
Low Brightness: 15,000 Hours
Fan Noise
Medium Brightness: 31 dB
Low Brightness: 27 dB
Security
Cable Lock Slot
Supported Languages
Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hindi
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 255 W
Standby Mode (Lamp Off): < 0.5 W
Certifications
FCC, cTUVus
Dimensions (W x H x D)
Weight
Packaging Info
Package Weight
7.045 lb
Box Dimensions (LxWxH)
16.4 x 11.7 x 6.5"
| Length | 16.4 in |
| Width | 11.7 in |
| Height | 6.5 in |
| Weight | 7.05 lbs |
