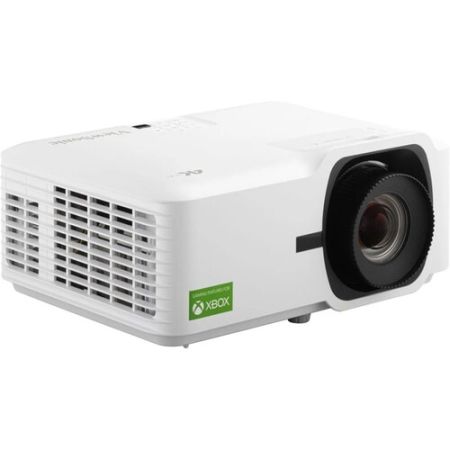

ViewSonic LX700-4K - 3500 Lumens 4K UHD 240Hz, 4.2ms Laser Gaming Projector Designed for Xbox with 1.36x Optical Zoom

Display System

1-Chip 0.65" DMD DLP

Native Resolution

3840 x 2160

Maximum Brightness

3500 Lumens (ANSI)

Throw Ratio

Projection Size

HDR Support

Yes: HDR10/Hybrid Log Gamma

Inputs/Outputs

2x HDMI 2.0b Audio, Video Input 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power, Service Input/Output 1x 12 V Trigger Control Output 1x DE-9/DB-9 (RS-232) Control Input/Output

Light Source

Laser Phosphor

Display System

1-Chip 0.65" DMD DLP

Native Resolution

3840 x 2160

Supported Resolutions

Maximum: 3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 240 Hz

Maximum Brightness

3500 Lumens (ANSI)

Offset

Aspect Ratio

Native: 16:9 Supported: 4:3

DLP Link 3D

Yes

Supported 3D Formats

Side by Side (up to 1080p) Top Bottom (up to 1080p) Frame Sequential (up to 1080p)

Color Depth

10-Bit (1.07 Billion Colors)

Scan

Horizontal: 15 to 135kHz Vertical: 23 to 240Hz

Latency

4.2 ms

Includes Lens

Yes

Focus

Manual

Aperture

f/2.51 to 2.93

Focal Length

15.985 to 21.423mm

Lens Shift

Vertical: 0 - 15%

Optical Zoom

Manual: 1.36x

Throw Distance

Throw Ratio

Projection Size

Keystone Correction

HDR Support

Yes: HDR10/Hybrid Log Gamma

Digital Zoom

2.0x

Multi-Input Support (PIP/PBP)

No

Ceiling Mountable

Yes

Rear Screen Projection

Yes

Built-In Speaker

Yes (Mono)

Speaker Power

15 W

Projection Tilt Option

Yes

Inputs/Outputs

2x HDMI 2.0b Audio, Video Input 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power, Service Input/Output 1x 12 V Trigger Control Output 1x DE-9/DB-9 (RS-232) Control Input/Output

HDCP Support

Yes: Version 2.2

Media/Memory Card Slot

No

Mobile App Compatible

No

Wireless LAN / Wi-Fi

No

Bluetooth

No

Light Source

Laser Phosphor

Expected Lamp Life

Low Brightness: 30,000 Hours Full Brightness: 20,000 Hours

Fan Noise

Full Brightness: 31 dB Low Brightness: 26 dB

Security

Keypad Lock Password Protection Security Bar

Supported Languages

Arabic Czech Dutch English Finnish French German Greek Indonesian Italian Japanese Korean Norwegian Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

Medium Brightness: 180 W Standby Mode (Lamp Off): < 0.5 W

Certifications

CE, FCC, ICES-003, RoHS2, WEEE

Operating Conditions

Storage Conditions

Dimensions (W x H x D)

Weight

Package Weight

10.345 lb

Box Dimensions (LxWxH)

15.9 x 11.2 x 6.1"
