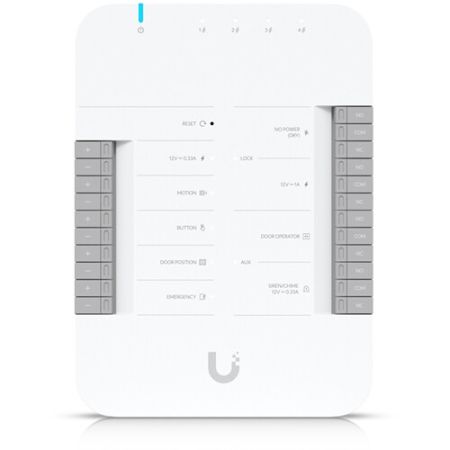

Ubiquiti UA-Hub-Door UniFi Access Door Hub

Ubiquiti UA-Hub-Door UniFi Access Door Hub Overview:

Designed for managing the entry and exit of a single door within the UniFi security ecosystem, UniFi Access Door Hub from Ubiquiti Networks is a single-door mechanism that provides complete entry and exit control via connected Access Readers.

Key Features of Ubiquiti UA-Hub-Door USA:

• PoE++ power method

• UL 294 Level

• 4 inputs for push buttons, motion sensors, emergency alarm, and door position sensors

• 2 AUX output relays

• PoE++ input, 50V DC, 1A and four PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)

Here is an in-depth description of the UniFi Access Door Hub.

Reader Support:

It supports integration of up to two UniFi Access Reader, allowing users to install access for both sides of the door. This Ubiquiti access control system is a single door controller, helping users enjoy full control over entry and exit.

AUX Output Relays:

It is a smart door controller that is provided with two AUX outlays, enabling users to connect external sirens and automatic door openers. You can thus provide an additional layer of security, making this network door access controller suitable for access control for offices as well as businesses.

Input Terminals:

This centralized door access management solution is equipped with four input terminals for installing sensors such as door position or emergency input, or buttons such as exit request or remote release. You can thus customize this UniFi Access Hub to cater to your needs.

PoE Support:

It is a PoE-powered door hub that allows you to supply both power and data through one cable. It can be powered through PoE++ input, 50V DC, and 1A. It also supports 4 PoE output ports featuring 5.4W per port (Max. 28W aggregated).

UL294 Certified:

This access control is UL 294 Level certified, providing safety for destructive attacks, line security, endurance, and standby power.
