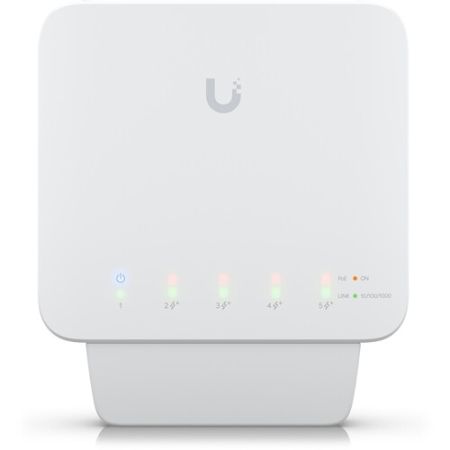

Ubiquiti Networks USW-FLEX-3 UniFi Flex 5-Port Gigabit PoE+ Compliant Outdoor Managed Switch (3-Pack)

|
Ubiquiti Networks USW-FLEX-3 Overview:
Designed for providing versatile switching performance for computers, access points, NAS enclosures, and other wired network devices, the Ubiquiti 5-port Gigabit PoE+ switch is a Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Key Ubiquiti USW-Flex-3 Specifications:
-
Up to 46W PoE budget
-
4 GbE PoE+ out LAN/WAN RJ45 Ports
-
1 GbE PoE++ in RJ45 port
-
Compact desktop, wall, and pole mount
-
16 Gbps switching capacity with 7 Mpps forward rate
-
Layer 2 features
-
Outdoor ready
Here is an in-depth breakdown of the salient features of UniFi Switch Flex 3-pack.
Port Configuration:
USW-Flex-3 USA is provided with 4 GbE PoE+ out LAN/WAN RJ45 Ports for high bandwidth applications. This makes this managed network switch a perfect network switch for homes, businesses, small offices, remote locations, challenging environments, industrial use, outdoor Wi-Fi, and a perfect network switch for security cameras.
Switching Performance:
This managed switch is capable of delivering 16 Gbps switching capacity, 5 Gbps total Non-Blocking Throughput, and it can support up to 7 Mpps forwarding rate. What’s more, it can support 1000 VLANs, and it comes with a 2000 MAC Address Table Size.
Layer 2 Capabilities:
This UniFi managed switch, which is outdoor rated, supports multiple layer 2 capabilities. For instance:
-
STP & RSTP
-
Egress Rate Limit
-
Flow Control
-
Storm Control
-
Multicast & Broadcast Rate Limiting
-
Port Isolation
-
Port Mirroring
-
Jumbo Frames
-
Loop Protection
Support for PoE+/PoE++
It is a PoE++ input switch, supporting a PoE power supply. In addition, it is also provided with 4 PoE+ and one PoE++ ports, wherein Max. PoE Wattage per Port by PSE for PoE++ is 25W.
Outdoor Ready Managed Switch:
This Ubiquiti wall mountable as well as pole mountable outdoor switch supports Air/contact: ± 16Kv ESD protection and it can work perfectly within -40 to 55° C (-40 to 131° F) at 46W PoE output and -40 to 65° C (-40 to 149° F) at 25W PoE output.
Length | 6.6 in |
Width | 6.3 in |
Height | 5.7 in |
Weight | 2.37 lbs |
