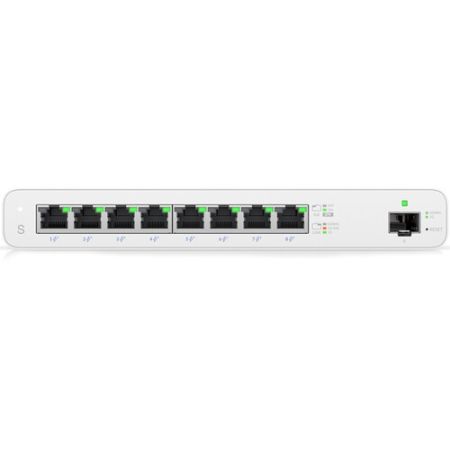

Ubiquiti Networks UISP-S 8-Port Gigabit PoE Compliant Managed Network Switch

Ubiquiti Networks UISP-S 8-Port Gigabit PoE Compliant Managed Network Switch Overview

Designed for MicroPoP applications and wireless ISP uses, UISP-S 8-Port Gigabit PoE Switch is an eight-port, Layer 2, Gigabit PoE switch, allowing network administrators to build a secure and high-performing network.

Key Features of Ubiquiti Networks UISP Switch:

• (8) GbE RJ45 ports plus one 1G SFP port

• 18 Gbps switching capacity with 13.9 Mbps forwarding rate

• 110W total PoE availability

Here is an in-depth description of Ubiquiti UISP-S specifications.

Port Configuration:

This is a managed network switch for WISP and a perfect Gigabit PoE switch for the MicroPoP application. It is provided with 8 GbE RJ45 ports wired gigabit speed, link, and activity. In addition, there is also an additional 1 G SFP port that can help you establish high-speed fiber uplinks for bandwidth-intensive applications.

This enterprise-grade port density makes this 1G SFP uplinks switch a perfect network switch for homes, enterprise-level offices, industrial network needs, outdoor WiFi needs, and IP security cameras.

8-Port Passive PoE Switch:

This is a PoE switch that is provided with eight 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) ports with each PoE+ port providing 30W/27V DC Max. Passive PoE wattage per port. Overall, it can provide a 110 W PoE budget, allowing you to power your IP cameras, access points, VoIP, and other networking devices.

Switching Performance:

This Ubiquiti wall-mountable network switch is capable of delivering 18 Gbps switching capacity with a 13.9 Mbps forwarding rate. It supports 9 Gbps total Non-Blocking Throughput. You can find this cost-effective Gigabit PoE switch suitable for small WISP, UISP-S use cases, and wireless ISP deployments.

Outdoor-Ready PoE Switch:

This is a compact PoE switch designed for outdoor installations. It comes with Air: ± 15kV, contact: ± 8kV ESD/EMP protection and it supports a -10 to 50° C (14 to 122° F) ambient temperature range and 5 to 95% non-condensing ambient humidity range.
