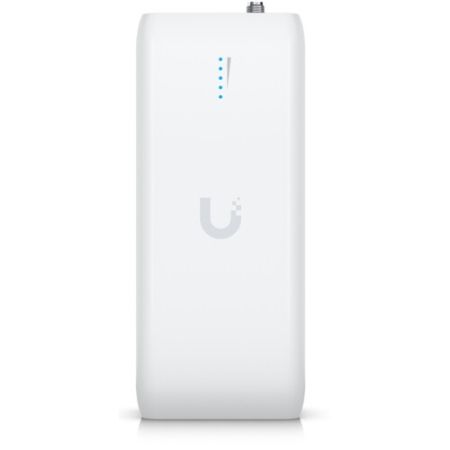

Ubiquiti Networks UDB-US Device Bridge

Ubiquiti Networks UDB-US Device Bridge Overview:

Designed to extend network connectivity for UniFi devices such as Protect PoE cameras, VoIP phones, and various IoT devices, UniFi Device Bridge is a plug-and-play and wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

Key Features of Ubiquiti UDB-US Device Bridge US version:

• GbE PoE RJ45 out port

• Uplink with WiFi Auto-Link

• Internal antenna

• WiFi 5 standard

• Wall & Table-mount Ubiquiti device bridge

• 866.7 Mbps (BW80) maximum data transfer rate at 5GHz band

• WPA2 AES (Always On) wireless security

• RP-SMA connector for antenna

Here is an in-depth description of Ubiquiti UDB-US specification.

Supported Data Transfer:

This plug-and-play PoE bridge supports WiFi 5 or 802.11ac standards, allowing you to transfer up to 866.7 Mbps data transfer rate.

Power Over Ethernet or PoE Support:

It is provided with one Gigabit LAN port with PoE that can provide 15W passive PoE output for compatible devices, making it a Power Over Ethernet bridge suitable for powering compatible IP cameras, VoIP phones, and other IT devices.

Enhanced Reach and Signal Stability:

The Ubiquiti wireless Ethernet adapter comes with an internal antenna with 5 dBi gain and an external omnidirectional antenna with 4 dBi, 360° x 30°. You can also use the included SMA antenna for added reach and signal stability.

In addition, it also features WiFi Auto-Link support, making this adapter essentially a plug-and-play solution as you don’t need to perform complex configuration.
