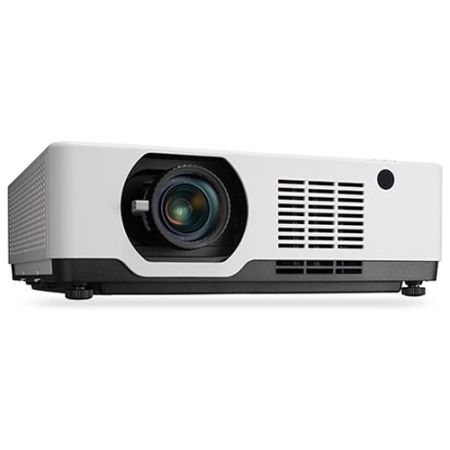

Sharp NP-PE506UL 5200-Lumen WUXGA Laser Projector

Display System

0.64" LCD

Native Resolution

1920 x 1200

Maximum Brightness

5200 Lumens

Throw Ratio

1.22 to 1.98:1

Projection Size

HDR Support

No

Inputs/Outputs

1x DE-15/DB-15 Video Input 2x HDMI 1.4b Audio, Video Input 1x 1/8" / 3.5 mm Mini Audio Input 2x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A Data Input/Output 1x RJ45 (Ethernet) LAN Input/Output

Light Source

Lamp

Display System

0.64" LCD

Native Resolution

1920 x 1200

Supported Resolutions

Minimum: 640 x 480 Maximum: 3840 x 2160 @ 30 Hz

Maximum Brightness

5200 Lumens

Aspect Ratio

16:10

Includes Lens

Yes

Focus

Manual

Aperture

f/1.5 to 2.08

Focal Length

17.2 to 27.7mm

Optical Zoom

1.6x

Throw Distance

Throw Ratio

1.22 to 1.98:1

Projection Size

Keystone Correction

HDR Support

No

Multi-Input Support (PIP/PBP)

No

Ceiling Mountable

Yes

Built-In Speaker

Yes (Mono)

Speaker Power

16 W

Inputs/Outputs

1x DE-15/DB-15 Video Input 2x HDMI 1.4b Audio, Video Input 1x 1/8" / 3.5 mm Mini Audio Input 2x 1/8" / 3.5 mm Mini Audio Output 1x DE-15/DB-15 Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A Data Input/Output 1x RJ45 (Ethernet) LAN Input/Output

HDCP Support

Not Specified by Manufacturer

Mobile App Compatible

No

Bluetooth

No

Light Source

Lamp

Expected Lamp Life

Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours

Fan Noise

Low Brightness: 27 dB

Input Power

100 to 240 VAC, 50 / 60 Hz at 1.6 to 4.5 A

Power Consumption

Full Brightness: 352 W Standby Mode (Lamp Off): 0.5 W

Operating Conditions

Storage Conditions

Dimensions (W x H x D)

Weight

Package Weight

24.14 lb

Box Dimensions (LxWxH)

20.4 x 20.2 x 11"
