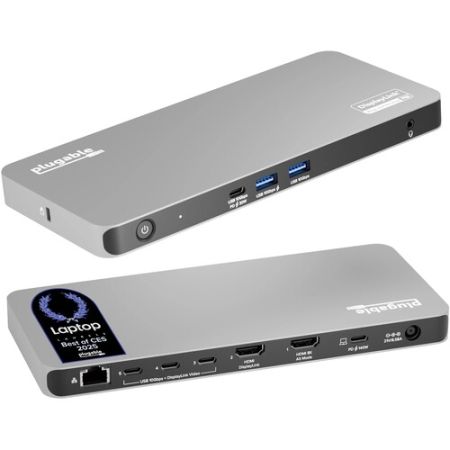

Plugable UD-7400PD USB-C/HDMI 5-Display Docking Station

USB I/O

1x USB-C 3.1/3.2 Gen 2 / Supports 30 W Power Delivery 3x USB-C 3.1/3.2 Gen 2 / Supports Video Alt Mode and 15 W Output 1x USB-A 3.1/3.2 Gen 2 / Supports 7.5 W Output 1x USB-A 3.1/3.2 Gen 2 / Supports 4.5 W Output

Video I/O

1x HDMI 2.1 1x HDMI 2.0a 3x DisplayPort 1.4

Max Resolution

4 Displays Supported: 7680 x 4320 at 30 Hz (Single) 3840 x 2160 at 60 Hz (Quad)

Audio I/O

1/8" / 3.5 mm Headphone/Microphone Combo Jack

Network I/O

1x RJ45 (2.5 GbE)

Host Connection

USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 140 W via Built-In Connector

Video I/O

1x HDMI 2.1 1x HDMI 2.0a 3x DisplayPort 1.4

Max Resolution

4 Displays Supported: 7680 x 4320 at 30 Hz (Single) 3840 x 2160 at 60 Hz (Quad)

Audio I/O

1/8" / 3.5 mm Headphone/Microphone Combo Jack

Network I/O

1x RJ45 (2.5 GbE)

Media Card Reader

No

Host Connection

USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 140 W via Built-In Connector

Power Source

Included AC Adapter with Barrel Connector: 21 VDC at 8.58 A (180 W)

Wireless Charging

No

OS Compatibility

Windows 10 or Later / macOS 11 or Later

Lock Slot

No

Certifications

Cable Length

Dimensions

Weight

Package Weight

2.82 lb

Box Dimensions (LxWxH)

9.3 x 5.9 x 2.9"
