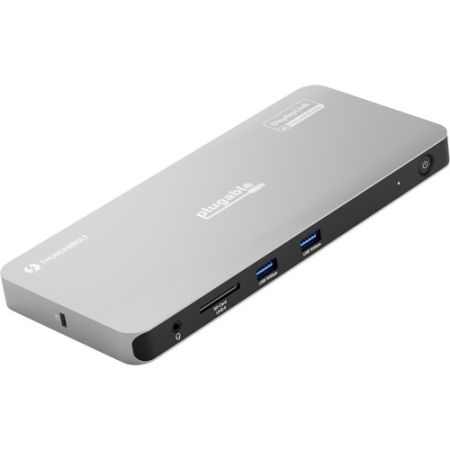

Plugable TBT-6950PD Thunderbolt 4 Docking Station for Quad Monitors 100W | 2x HDMI | 4x Thunderbolt 4/USB C

USB I/O

3x USB-C (Thunderbolt 4) / Supports Video Alt Mode and 15 W Output 2x USB-A 3.1/3.2 Gen 2 / Supports 4.5 W Output

Video I/O

2x HDMI 2.0

Max Resolution

4 Displays Supported: 3840 x 2160 at 60 Hz (Single) 3840 x 2160 at 60 Hz (Dual) 3840 x 2160 at 60 Hz (Triple) 3840 x 2160 at 60 Hz (Quad)

Audio I/O

1/8" / 3.5 mm Headphone/Microphone Combo Jack

Network I/O

1x RJ45 (10/100/1000 Mb/s)

Host Connection

USB-C (Thunderbolt 4) Supporting USB Power Delivery up to 96 W via Built-In Connector

Video I/O

2x HDMI 2.0

Max Resolution

4 Displays Supported: 3840 x 2160 at 60 Hz (Single) 3840 x 2160 at 60 Hz (Dual) 3840 x 2160 at 60 Hz (Triple) 3840 x 2160 at 60 Hz (Quad)

Audio I/O

1/8" / 3.5 mm Headphone/Microphone Combo Jack

Network I/O

1x RJ45 (10/100/1000 Mb/s)

Media Card Reader

1x SDXC (UHS-II [312 MB/s])

Host Connection

USB-C (Thunderbolt 4) Supporting USB Power Delivery up to 96 W via Built-In Connector

Power Source

Included AC Adapter with Barrel Connector: 21 VDC at 8.58 A (180 W)

Wireless Charging

No

OS Compatibility

Windows 10 or Later / macOS 11 or Later / Chrome OS

Lock Slot

Yes

Cable Length

Dimensions

Weight

Package Weight

2.79 lb

Box Dimensions (LxWxH)

9.1 x 5.7 x 2.9"
