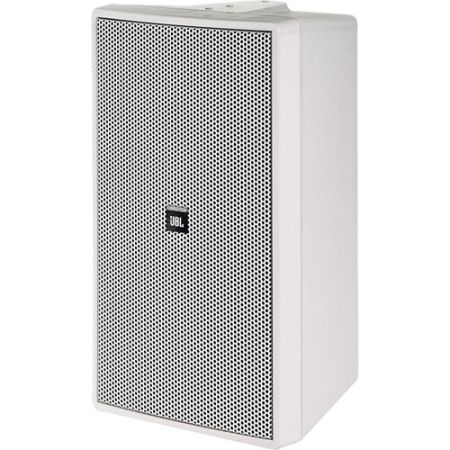

JBL C29AV-WH-1 Control 29AV-1 8" 2-Way 300W Indoor/Outdoor Loudspeaker (Single, White)
Availablity :
Out of Stock
Out of Stock
|
Call us for price (669) 244-0333
JBL C29AV-WH-1 Control 29AV-1 8" 2-Way 300W Indoor/Outdoor Loudspeaker (Single, White)
Key Specs
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
300 W Program
150 W RMS
Constant Voltage / Transformer Taps
100 V
28 / 55 / 110 W or 8 Ohms Bypass
70 V
14 / 28 / 55 / 110 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
3.3 to 6.3 Ohms (Minimum)
HF Driver
LF Driver
Frequency Range
37 Hz to 18 kHz -10 dB
Color
White
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 100 Hours:
300 W Program
150 W RMS
Constant Voltage / Transformer Taps
100 V
28 / 55 / 110 W or 8 Ohms Bypass
70 V
14 / 28 / 55 / 110 W or 8 Ohms Bypass
Impedance
8 Ohms (Thru Setting)
3.3 to 6.3 Ohms (Minimum)
Shielded
Yes
Drivers
HF Driver
LF Driver
LF Voice Coil
Performance
Frequency Range
37 Hz to 18 kHz -10 dB
Frequency Response
Maximum SPL
118 dB (Peak)
112 dB (Continuous)
Sensitivity
90 dB SPL
Coverage Angle
Directivity
6.7 (Directivity/Q Factor)
8.3 dB (Directivity Index)
Crossover
Low-Pass:
2.5 kHz, 12 dB/Octave
High-Pass:
2.5 kHz, 18 dB/Octave
Protections
AC Fuse, Overvoltage
Connectivity
Inputs/Outputs
Screw Terminal
Maximum Wire Gauge
12 AWG
Physical
Certifications
UL
Environmental Resistance
Water-Resistant (IPX4)
Color
White
Rotation Range
Construction Material
High-Impact Polystyrene, Stainless Steel Grille
Dimensions
Weight
Packaging Info
Package Weight
33.3 lb
Box Dimensions (LxWxH)
23.4 x 14.5 x 13.7"
| Length | 23.4 in |
| Width | 14.5 in |
| Height | 13.7 in |
| Weight | 33.3 lbs |
