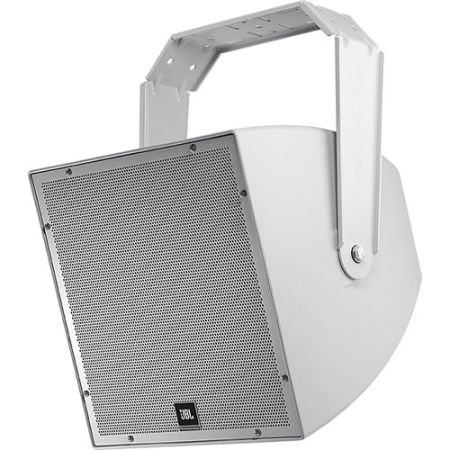

JBL AWC129 Professional All-Weather AWC129 - speaker - for PA system
Availablity :
Out of Stock
Out of Stock
|
Call us for price (669) 244-0333
JBL AWC129 Professional All-Weather AWC129 - speaker - for PA system
Key Specs
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours:
400 W
1600 W Peak
For 100 Hours:
250 W
1000 W Peak
Constant Voltage / Transformer Taps
70 V
200 / 100 / 50 / 25 W or 8 Ohms Bypass
100 V
200 / 100 / 50 W or 8 Ohms Bypass
Impedance
8 Ohms (Nominal)
HF Driver
LF Driver
Frequency Range
55 Hz to 20 kHz -10 dB
Color
Gray
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours:
400 W
1600 W Peak
For 100 Hours:
250 W
1000 W Peak
Constant Voltage / Transformer Taps
70 V
200 / 100 / 50 / 25 W or 8 Ohms Bypass
100 V
200 / 100 / 50 W or 8 Ohms Bypass
Impedance
8 Ohms (Nominal)
Transformer Wattage
200 W
Enclosure Type
Sealed
Drivers
HF Driver
HF Voice Coil
LF Driver
LF Voice Coil
Performance
Frequency Range
55 Hz to 20 kHz -10 dB
Frequency Response
Maximum SPL
122 dB (Continuous)
128 dB (Peak)
Sensitivity
96 dB (Average)
Coverage Angle
Directivity
9.5 dB (Directivity Index)
10.1 dB (Directivity/Q Factor)
Crossover
High-Pass:
1.5 kHz, 18 dB/Octave (Passive)
Low-Pass:
1.5 kHz, 12 dB/Octave (Passive)
Protections
Transducer Overdrive
Connectivity
Inputs/Outputs
1x Barrier Strip 2-Pole Speaker Input
1x Barrier Strip 2-Pole Speaker Thru
Maximum Wire Gauge
12 AWG / 2.5 mm
Physical
Environmental Resistance
Dust/Water-Resistant (IP56)
Color
Gray
Mounting
1x M10 Bracket Point (Each Side)
1x M6 Suspension (Rear)
Construction Material
ABS, Glass, Metal Grille
Dimensions
Weight
Packaging Info
Package Weight
46.55 lb
Box Dimensions (LxWxH)
22.3 x 20.8 x 20.5"
| Length | 22.3 in |
| Width | 20.8 in |
| Height | 20.5 in |
| Weight | 46.55 lbs |
