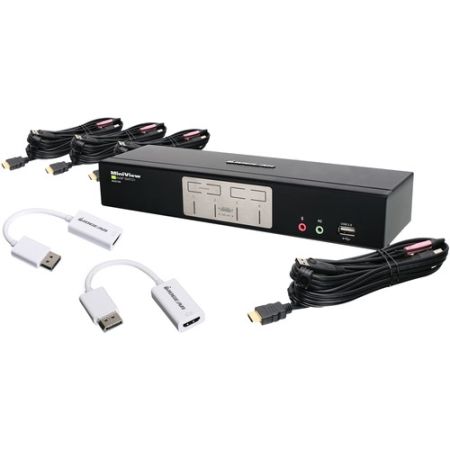

IOGEAR GCS1794DPKIT 4-Port HDMI KVMP Switch with DisplayPort Adapters Bundle

Max Computer Connections

4

Port Selection

Hotkeys or front-panel switch button

Console Connectors

1x HDMI female 1 x USB Type-A female (keyboard) 1 x USB Type-A female (mouse) 2 x 3.5 mm stereo female (green, audio) 2 x 3.5 mm stereo microphone female (pink, microphone) 1 x 4-conductor 3.5 mm (black, flash ROM upgrade)

PC Connectors

4 x HDMI (two DisplayPort with adapters) 4 x USB Type-B female 4 x 3.5 mm stereo female (green, audio) 4 x 3.5 mm stereo female (pink, microphone)

Additional Ports

2 x USB 2.0 Type-A female (one front and one rear)

Adapter Specifications

DisplayPort Specification 1.1a for both 1.62 Gbps and 2.7 Gbps DisplayPort link tracking Compliant with DVI 1.0 up to 1.65 Gbps Supports Deep Sleep mode

LEDs

4 x USB peripherals (green) 4 x On line (orange)

Emulation

USB keyboard and mouse

Video Resolution

1920 x 1200 (1080p)

Scan Interval

1 to 99 seconds

Power

5.3 V, 2.4 A

Operating Temperature

Storage Temperature

Humidity (Non-Condensing)

0 to 80%

Supported Operating Systems

Windows, Mac, Sun Solaris, and Linux

Dimensions

10.3 x 1.6 x 3" / 26 x 4.1 x 7.6 cm

Weight

1.9 lb / 0.9 kg

Package Weight

5.5 lb

Box Dimensions (LxWxH)

13.4 x 8.55 x 4"
