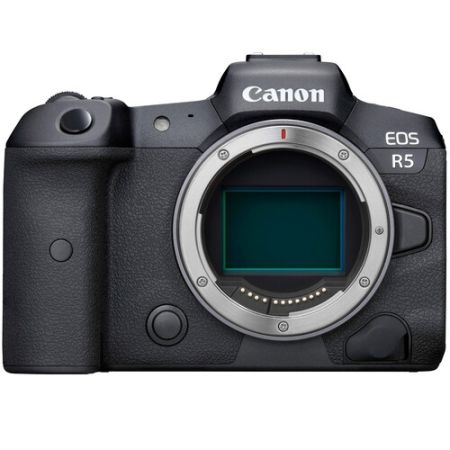

Canon 4147C002 EOS R5 Mirrorless Camera

Lens Mount

Canon RF

Effective Sensor Resolution

45 Megapixel (8192 x 5464)

Image Sensor

Full-Frame

Image Stabilization

Sensor-Shift

ISO/Gain Sensitivity

Photo Native: 100 to 51,200 (50 to 102,400 Extended) Video Native: 100 to 25,600 (100 to 51,200 Extended)

Internal Recording

Raw 12-Bit DCI 8K at 24.00/25/29.97/23.98 fps H.264 4:2:0 8-Bit Up to DCI 8K at 24.00/25/29.97/23.98 fps H.265 4:2:2 10-Bit Up to DCI 8K at 24.00/25/29.97/23.98 fps

Video Output

4:2:2 10-Bit via HDMI Up to DCI 4K up to 59.94 fps ProResRAW 10-Bit via HDMI Up to DCI 8K at 25/24.00/29.97/23.98 fps

Media/Memory Card Slot

Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

Video I/O

1x Micro-HDMI Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O

1x USB-C Input

Other I/O

1x Canon N3 Remote Input 1x PC Flash Sync Output 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)

Wireless

Wi-Fi 5 (802.11ac) / Bluetooth 5.0

Display Type

Free-Angle Tilting 3.2" Touchscreen LCD Status Display (Top)

Battery

1x LP-E6NH Rechargeable Lithium-Ion (Included)

Lens Mount

Canon RF

Effective Sensor Resolution

Effective: 45 Megapixel (8192 x 5464) Actual: 47.1 Megapixel

Image Sensor

36 x 24 mm (Full-Frame) CMOS

Sensor Crop (35mm Equivalent)

Crop Factor: 1x Additional Modes: 1.6x *Additional Crop Occurs in Select Video Modes

Image Stabilization

Sensor-Shift, 5-Axis

Built-In ND Filter

No

Capture Type

Stills & Video

Shutter Type

Mechanical Focal Plane Shutter and Electronic Rolling Shutter

Shutter Speed

Electronic Shutter 1/8000 to 1/2 Second Electronic Front Curtain Shutter 1/8000 to 30 Seconds Mechanical Shutter 1/8000 to 30 Seconds

Bulb/Time Mode

Bulb Mode

ISO/Gain Sensitivity

Photo Native: 100 to 51,200 (50 to 102,400 Extended) Video Native: 100 to 25,600 (100 to 51,200 Extended)

Metering Method

Center-Weighted Average, Evaluative, Partial, Spot

Exposure Modes

Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation

-3 to +3 EV (1/3, 1/2 EV Steps)

Metering Range

-3 to 20 EV

White Balance

2000 to 10,000K Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten

Continuous Shooting

Up to 20 fps at Maximum Resolution for up to 83 Frames (Raw) / 170 Frames (JPEG)

Interval Recording

Yes

Self-Timer

2/10-Second Delay

Aspect Ratio

1:1, 3:2, 4:3, 16:9

Image File Format

JPEG, Raw

Bit Depth

14-Bit

Internal Recording

Raw 12-Bit 8192 x 4320 at 24.00/25/29.97/23.98 fps2600 Mb/s) H.264 4:2:0 8-Bit 8192 x 4320 at 24.00/25/29.97/23.98 fps (470 to 1300 Mb/s) 7680 x 4320 at 23.98/25/29.97 fps (470 to 1300 Mb/s) 4096 x 2160 at 100/23.98/120/50/24.00/25/29.97/59.94 fps (120 to 1880 Mb/s) 3840 x 2160 at 100/23.98/50/25/29.97/59.94 fps (120 to 1880 Mb/s) 1920 x 1080p at 23.98/50/25/29.97/59.94 fps (12 to 180 Mb/s) H.265 4:2:2 10-Bit 8192 x 4320 at 24.00/25/29.97/23.98 fps (680 to 1300 Mb/s) 7680 x 4320 at 23.98/25/29.97 fps (680 to 1300 Mb/s) 4096 x 2160 at 100/23.98/120/24.00/25/29.97/59.94 fps (170 to 1880 Mb/s) 3840 x 2160 at 100/23.98/50/25/29.97/59.94 fps (170 to 1880 Mb/s) 1920 x 1080p at 23.98/50/25/29.97/59.94 fps (28 to 230 Mb/s)

Video Output

4:2:2 10-Bit via HDMI 4096 x 2160 up to 59.94 fps 3840 x 2160 up to 59.94 fps ProResRAW 10-Bit via HDMI 8192 x 4320 at 25/24.00/29.97/23.98 fps 5088 x 2680 at 59.94/23.98/24.00/25/29.97/50 fps

Fast-/Slow-Motion Support

Yes

Gamma Curve

Canon Log, Canon Log 3

Recording Limit

30-Minute Maximum

IP Streaming

Yes

Built-In Microphone

Stereo

Audio Recording

AAC Audio LPCM Audio

Media/Memory Card Slot

Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

Internal Storage

No

Video I/O

1x Micro-HDMI Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input

Power I/O

1x USB-C Input

Other I/O

1x Canon N3 Remote Input 1x PC Flash Sync Output 1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)

Wireless

Wi-Fi 5 (802.11ac) / Bluetooth 5.0

Mobile App Compatible

Yes: Android & iOS App Name: Canon Camera Connect Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed

Global Positioning (GPS, GLONASS, etc.)

GPS *Via Connected Smartphone

Display Type

Free-Angle Tilting 3.2" Touchscreen LCD Status Display (Top)

Resolution

2,100,000 Dot

Type

Electronic (OLED)

Size

0.5"

Resolution

5,760,000 Dot

Eye Point

23 mm

Coverage

100%

Magnification

Approx. 0.76x

Diopter Adjustment

-4 to +2

Focus Type

Auto and Manual Focus

Focus Mode

Continuous-Servo AF, Manual Focus, Single-Servo AF

Autofocus Points

Phase Detection: 1053

Autofocus Sensitivity

-6 to +20 EV

Built-In Flash/Light

No

Maximum Sync Speed

1/250 Second

Flash Compensation

-3 to +3 EV (1/3, 1/2 EV Steps)

Dedicated Flash System

eTTL

External Flash Connection

PC Terminal

Battery

1x LP-E6NH Rechargeable Lithium-Ion (Included)

Shoe Mount

1x Hot Shoe

Tripod Mount

1x 1/4"-20 Female (Bottom)

Materials

Magnesium Alloy

Operating Conditions

Dimensions (W x H x D)

Weight

Package Weight

3.045 lb

Box Dimensions (LxWxH)

11 x 9.4 x 6.1"
