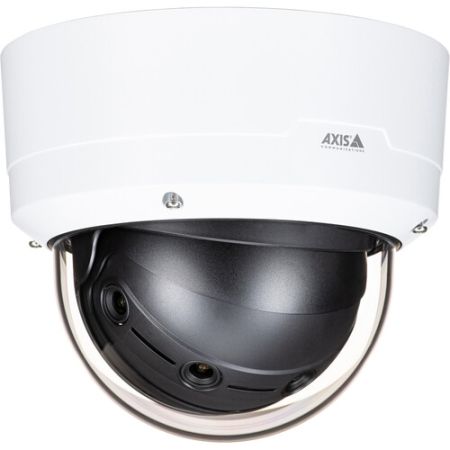

Axis Communications 02658-001 Q4809-PVE 26MP Outdoor Four-Sensor Network Panoramic Dome Camera with Heater

Image Sensor

1/2.3"-Type

Focal Length

5mm

Field of View

Built-In Microphone

No

Power I/O

1x RJ45

Number of Lenses

4

Image Sensor

1/2.3"-Type CMOS

Effective Sensor Resolution

12 Megapixel

IR Cut Filter

Yes

Day/Night

Yes

DORI Coverage

Shutter Speed

1/100000 to 1/2 Second

Automatic Gain Control

Yes

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.1 Lux (Color) 0.03 Lux (Black and White)

Focal Length

5mm

Field of View

Maximum Aperture

f/1.7

Supported Protocols

Video Streaming ARP/Bonjour/CDP/CIFS/SMB/DDNS/DHCP/DNS/FTP/HTTP/ICMP/IGMP/IPv4/v6/LLDP/mDNS/MQTT/NTP/ONVIF Profile G/ONVIF Profile M/ONVIF Profile S/ONVIF Profile T/QoS Layer 3 DiffServ/RTCP/RTP/RTSP/SFTP/SMTP/SNMP v1/v2c/v3 (MIB-II)/SRTP/SSH/SSL/TLS/syslog/TCP/UDP/UPnP/USGv6/Zero Configuration

Max IP Streaming

H.264, H.265, MJPEG via RJ45 10240 x 2560 up to 30.00 fps

Multi-View Streaming

Yes: 6 Streams

Camera Angle Adjustment

Security

Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC

Audio I/O

1x 1/8" / 3.5 mm TS Mono Input

Other I/O

1x RJ45 1x Block Input/Output

1- or 2-Way Audio

One-Way

Audio Formats

AAC-LC, G.711, G.726, LPCM, Opus

Built-In Microphone

No

Memory

8192 MB RAM / 8192 MB Flash

External Storage Options

Cloud, NAS

Analytics

Abandoned Object, Audio Detection, Camera Sabotage/Tampering, Motion Detection, Object Counting, Object Detection, Object Removal, Scene Change Detection

Built-In Installation Aids

Level Grid, Pixel Counter, Remote Pan, Remote Tilt, Roll

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

Alarm I/O

No

PoE Support

PoE+ 802.3at, PoE 802.3af

Power I/O

1x RJ45

Power Consumption

PoE: 9.74 to 19.1 W with Heater

Operating Conditions

Storage Conditions

Impact Resistance

Impact-Resistant (IK10)

Environmental Resistance

Dust/Weather/Water-Resistant (IP67)

Startup Temperature

Materials

Aluminum, Polycarbonate

Certifications

BIS, CAN/CSA, CE, CSA, EN, ETSI, EU, FCC, ICES, IEC, IEC/EN, IEC/EN/UL, KC, NEMA, RCM, RCM, REACH, RoHS, TAA, UL, VCCI, cUL

Supported Languages

Czech Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese

Dimensions (W x H x D)

Weight

Package Weight

9.635 lb

Box Dimensions (LxWxH)

12.8 x 11 x 10.6"
