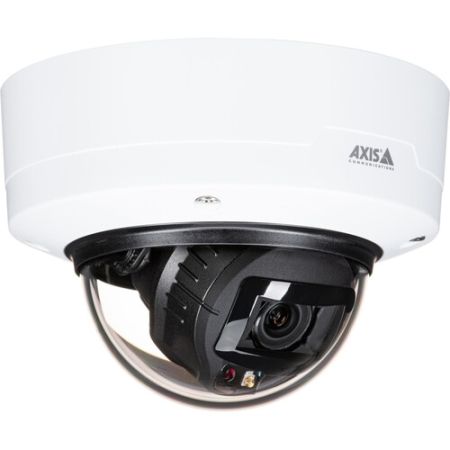

AXIS 02986-001 P32 Series P3288-LVE - network surveillance camera - dome - TAA Compliant

Image Sensor

1/1.8"-Type

Focal Length

4.4 to 14.6mm

Field of View

Built-In Microphone

No

Power I/O

1x RJ45

Number of Lenses

1

Image Sensor

1/1.8"-Type CMOS

Effective Sensor Resolution

8 Megapixel

IR Cut Filter

Yes

Day/Night

Yes

DORI Coverage

Shutter Speed

1/66500 to 2 Seconds

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.11 Lux (Color) 0 Lux (Black and White)

Focal Length

4.4 to 14.6mm

Max Optical Zoom

3.3x

Field of View

Maximum Aperture

f/1.65 to 3.65

Supported Protocols

Video Streaming FTP/Zero Configuration/Bonjour/ICMP/SMTP/SNMP v1/v2c/v3 (MIB-II)/LLDP/ONVIF Profile T/SFTP/ARP/HTTP/MQTT/SRTP/mDNS/CDP/SSL/TLS/DDNS/CIFS/SMB/SSH/NTP/IGMP/DNS/UDP/QoS Layer 3 DiffServ/syslog/DHCP/TCP/ONVIF Profile G/ONVIF Profile M/IPv4/v6/RTP/UPnP/USGv6/RTCP/RTSP/ONVIF Profile S

Max IP Streaming

H.264, H.265, MJPEG via RJ45 3840 x 2160 up to 30.00 fps

Multi-View Streaming

Yes

Camera Angle Adjustment

Security

Digest Authentication, HTTPS, IEEE 802.1X, Password Protection

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC

Other I/O

1x RJ45 1x Block 4-Pin Input/Output

Built-In Microphone

No

Memory

2 GB RAM / 8000 MB Flash

External Storage Options

Cloud, NAS

Analytics

Abandoned Object, Audio Detection, License Plate Recognition, Motion Detection, Object Counting, Object Detection, Object Removal, People Counting, People Detection, Privacy Guard, Scene Change Detection, Sound Classification, Vehicle Detection, Virtual-Line Crossing Detection

Built-In Installation Aids

Level Grid, Pixel Counter, Remote Focus, Remote Zoom, Straighten Image

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

Alarm I/O

1 / 1

PoE Support

PoE+ 802.3at, PoE 802.3af

Power I/O

1x RJ45

Power Consumption

PoE: 5.5 W with IR Off PoE: 12.9 W with Heater, IR On

Operating Conditions

Storage Conditions

Impact Resistance

Impact-Resistant (IK10)

Environmental Resistance

Dust/Weather/Water-Resistant (IP66)

Startup Temperature

Materials

Plastic, Polycarbonate

Certifications

CAN/CSA, CE, EAC, EN, EU, FCC, ICES, IEC, IEC/EN, IEC/EN/UL, NEMA, RCM, REACH, RoHS, TAA, UKCA, UL, VCCI, cUL

Illumination

Supported Languages

Czech Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese

Dimensions (W x H x D)

Weight

Package Weight

2.69 lb

Box Dimensions (LxWxH)

8.2 x 7.7 x 6.5"
