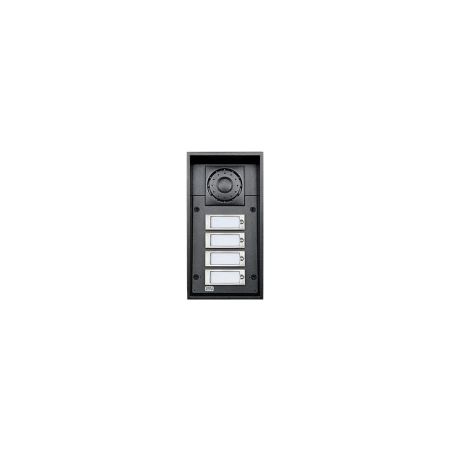

2N 01343-001 IP Force 4 Buttons, HD Camera - IP intercom station
Availablity :
Out of Stock
Out of Stock
|
2N 01343-001 IP Force 4 Buttons, HD Camera - IP intercom station
Call us for price (669) 244-0333
2N 01343-001 IP Force 4 Buttons, HD Camera - IP intercom station
2N IP Force Specs
Signaling Protocols
SIP 2.0 (RFC - 3261)
Microphone
2 x Built-In Microphones
Speaker
10 W
Sound Pressure
94 dB (1 kHz at 1 m)
Audio Codecs
G.711, G.729, G.722, L16 / 16 kHz
Camera Resolution
1280 x 960
Viewing Angle
Night Vision
Yes
Video Codecs
H.263+, H.263, H.264, MJPEG
Power Supply
PoE
PoE 802.3af (Class 0 - 12.95 W)
LAN
10/100Base-TX with Auto-MDIX
Switch
Passive Switch: NC/NO Contacts, Max 30 VAC/VDC, 1 A
Output
Active Switch: 9 to 13 VDC, 700 mA Maximum
PoE: 9 V
Adapter: 1 V Less than Source
Supported Protocols
SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF
Operating Temperature
Storage Temperature
Operating Humidity
10 to 95%
IP Rating
IP69K
IK Rating
IK10
Dimensions
8.5 x 4.3 x 3.3" / 21.7 x 10.9 x 8.3 cm
Weight
4.4 lb / 2 kg
Packaging Info
Package Weight
4.625 lb
Box Dimensions (LxWxH)
12.7 x 7.4 x 6"
| Length | 12.7 in |
| Width | 7.4 in |
| Height | 6 in |
| Weight | 4.63 lbs |
