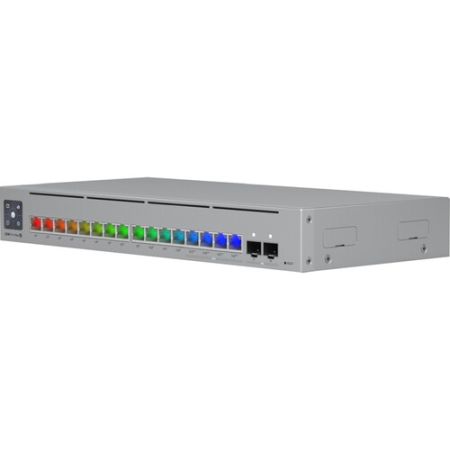

Ubiquiti Networks Pro Max PoE 16-Port 2.5G / 1G Managed Network Switch

Ubiquiti Networks Pro Max PoE 16-Port 2.5G / 1G Managed Network Switch

Designed for high-performance enterprise-grade settings, Ubiquiti Pro Max 16-Port is a 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Key Features of UniFi Pro Max 16 PoE:

• 12 GbE PoE+ RJ45 and 4 GbE++ RJ45 Ports

• 180W total PoE output

• Layer 3 switching

• Silent, fanless cooling

• 1.3"touchscreen display with AR switch management

• Etherlighting

• 84 Gbps switching capacity with 62 Mbps forwarding rate

Here is a detailed breakdown of the USW-Pro-Max-16-PoE managed switch.

Port Density

This 16-port multi-gigabit PoE switch is a professional-grade managed switch, featuring 4 GbE RJ45 Ethernet ports as well as 12 GbE RJ45 ports for high-speed connectivity. You can thus provide gigabit ethernet connections to IP cameras, access points, and other networking devices in your network.

Etherlighting:

This is a cutting-edge feature that has been introduced in the Professional Max network switch series of Ubiquiti. The Etherlighting ports are designed to illuminate, indicating port location, speed, link, and native VLAN/network.

It helps you identify native VLAN with a glance, differentiate ports by speed as they appear in different colors, and you can find any device in a second. You can thus ensure effective network and cable management to boost the productivity of your network infrastructure.

Switching Performance:

It supports 84 Gb/s (115 Gb/s non-blocking) switching capacity with 42 Gbps total non-blocking throughput and 62 Mpps forwarding rate.

It also supports 1,000 VLANs and it comes with a 16,000 MAC address table size, making it a suitable network switch for large networks, network switch for complex networks, network switch for high-density networks, network switch for network redundancy, network switch for network segmentation, network switch for network optimization, network switch for network reliability, network switch for network performance, and network switch for network scalability.

1.3" Touchscreen Display:

Ubiquiti UniFi Pro Max 16 PoE is provided with a 1.3" touchscreen display, allowing network administrators to see vital information regarding the health of the network at a glance, facilitating network monitoring, network troubleshooting, and network configuration.

Support for PoE:

This high-bandwidth PoE switch is provided with 12 PoE+ and 4 PoE++ ports with each PoE+ providing 32W and PoE++ supporting 64W max PoE wattage per port. Overall, it can provide 180W PoE output, allowing you to power your IP cameras, access points, VoIP, and other networking devices.

Layer 3 Managed Switch:

16 port multi-gigabit PoE switch of Ubiquiti is a layer 3 managed switch, offering cutting-edge layer 3 features such as DHCP server, DHCP relay, inter-VLAN routing, and static routing.

In addition, Layer 2 switching features have also been incorporated including:

• LACP Port Aggregation

• STP & RSTP

• QoS (DSCP)

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping

• 802.1X Control

• MAC-Based ACLs & Device Isolation

• DHCP Snooping & Guarding

• Egress Rate Limit

• Flow Control

• Storm Control

• Multicast & Broadcast Rate Limiting

• MAC Address Blocking

• IP-Based ACLs & Network Isolation

• MAC-Based Port Restriction

• Port Isolation

• Port Mirroring

• Jumbo Frames

• LLDP-MED

• Voice VLAN

• Loop Protection
